Snap On Strapping Seals for Steel Strap-Open type
Overview
-
Items： snap-on strapping seals for steel strap(open type)
-
Brand： Shenzhen Superworker
-
Color：silver
- Features:
- 1. can be used for all kinds of automatic strapping machines
2. used for steel strapping of 19mm, 25mm and 32mm width
3. material: cold rolled or galvanized high strength carbonized steel.
4. Secure seal guaranteed
5. Galvanized to prevent rust.
6. Can be stacked
Pictures（There is a slight color difference due to photo shooting and screen display, the galvanized strapping seals are actually brighter than cold rolled one）
-

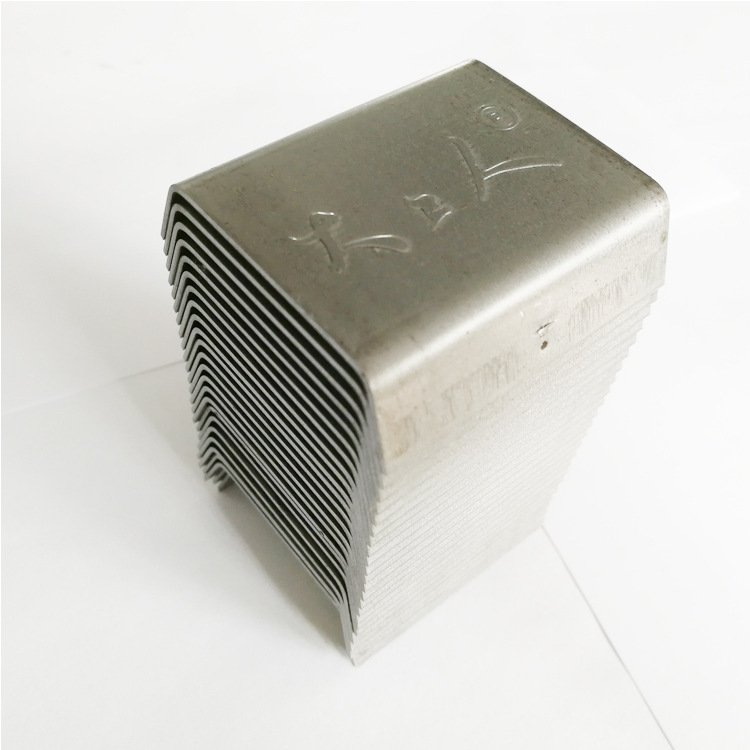

Galvanized strapping seals
-
Galvanized strapping seals(multiple stacks)
-
Cold-rolled strapping seals
-
Cold-rolled strapping seals(multiple stacks)
The range of strapping seals (strapping seal for 19mm wide steel strapping is also available)
-
The dimension of strapping seal for 25mm steel strip.
-
The dimension of strapping seal for 32mm steel strip.
Specification of Superworker Steel Strapping Seal:
|
Open Metal Seal Model |
For the width of steel strip |
Material |
For strapping machine |
Thickness mm |
Length mm |
Width mm |
Width between left and right opening of the steel banding clip mm |
The distance from the start to the end of the banding clip opening mm |
|
29.7mm open metal seal |
25mm |
Cold rolled or galvanized |
10±0.1 |
50±0.2 |
29.7 |
39.3-0.4 |
13±0.2 |
|
|
36.7mm open metal seal |
32mm |
Cold rolled or galvanized |
0.9±0.1 |
50±0.2 |
36.7 |
46.3-0.4 |
13±0.2 |

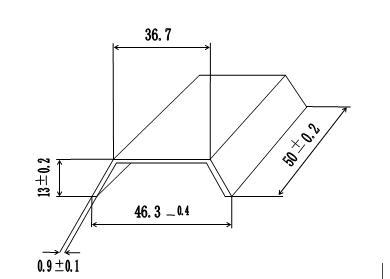

Diagram of strapping seals
